MLTK Overview

An overview of how to use the Machine Learning Toolkit (MLTK) to develop models for embedded devices


  • Typical machine learning development flow
  • Model development and execution
  • Acquiring a dataset
  • Analyzing and preprocessing a dataset
  • Designing a model
  • Evaluating a model
  • Profiling a model
  • Deploying a model
  • Next steps

Use the arrows to navigate,

left/right and up/down

Hint: You can also use your keyboard's arrows

Typical Model Development

Model Design - PC/Cloud

Model Execution - Embedded Device

Acquire, Analyze & Preprocess Dataset

Design & Train


Evaluate & Profile


Quantize & Compile


Model Binary

Preprocess Data




Interpreter Results

Firmware Application

Handles Results

Raw Sensor Data

  • Machine learning model design and development is typically done on a desktop computer or in the Cloud
    • The MLTK is used in this phase
  • Once the machine learning model is trained and quantized, the model binary file is loaded on the embedded device for execution
    • ​The Gecko SDK is used in this phase
    • The MLTK may also be used in this phase
  • The MLTK offers tools to aid all aspects of model design and development

Model Development & Execution

Dataset Acquisition

  • The first and most important step of model development is acquiring a representative dataset

  • To create a robust model, the data used to train the model must be similar to the data the embedded device will see in the field

  • The dataset is typically application-specific

  • The MLTK comes with reference datasets

Common Dataset Issues

For many machine learning applications, acquiring a representative dataset may be challenging.

Many times the dataset will suffer from one or more of the following:

  • The dataset does not exist - Need to manually collect samples
  • The raw samples exist but are not “labeled” - Need to manually group the samples
  • The dataset is “dirty” - Bad/corrupt samples, mislabeled samples
  • The dataset is not representative - Duplicate/similar samples, not diverse enough to cover the possible range seen in the real-world


A clean, representative dataset is one of the best ways to train a robust model. It is highly recommended to invest the time/energy to create a good dataset!

Dataset Analysis and Preprocessing

  • Once a dataset is acquired, it typically needs to be analyzed and preprocessed
  • Preprocessing can be thought of as a way of amplifying the signals in the dataset so that the machine learning model can more easily learn its patterns and make accurate predictions
  • Whatever preprocessing is done to the dataset during model training must also be done on the embedded device at run-time
  • The MLTK features:
    • Embedded model parameters so the preprocessing settings used during training may also be used on the embedded device at runtime
    • Support for custom C++ Python wrappers - these allow for sharing code between Python during model training and the embedded device at runtime
    • Audio Utilities to preprocess and visualize audio data

Audio Utilities

  • The MLTK features several tools to aid the development of audio-based ML models (e.g. Keyword Spotting)
  • AudioFeatureGenerator - a library to convert streaming audio into spectrograms for classification by a Convolutional Neural Network (CNN)

  • view_audio - command to visualize real-time audio samples as a spectrogram

  • classify_audio - command to classify real-time microphone audio

Audio Feature Generator

  • A common audio preprocessing technique is converting audio signals to spectrograms
    • A spectrogram is a 2D, greyscale image of an audio sample
  • The MLTK features the AudioFeatureGeneator Python component which converts a raw audio sample into a spectrogram. It features:
    • A C++ Python wrapper that enables the model training scripts to use the exact same source code as the embedded device at runtime
    • A Gecko SDK component so the firmware application can easily convert the microphone audio into spectrograms
    • Embedded model parameters so the settings used to generate the spectrograms during training are also used by the embedded device

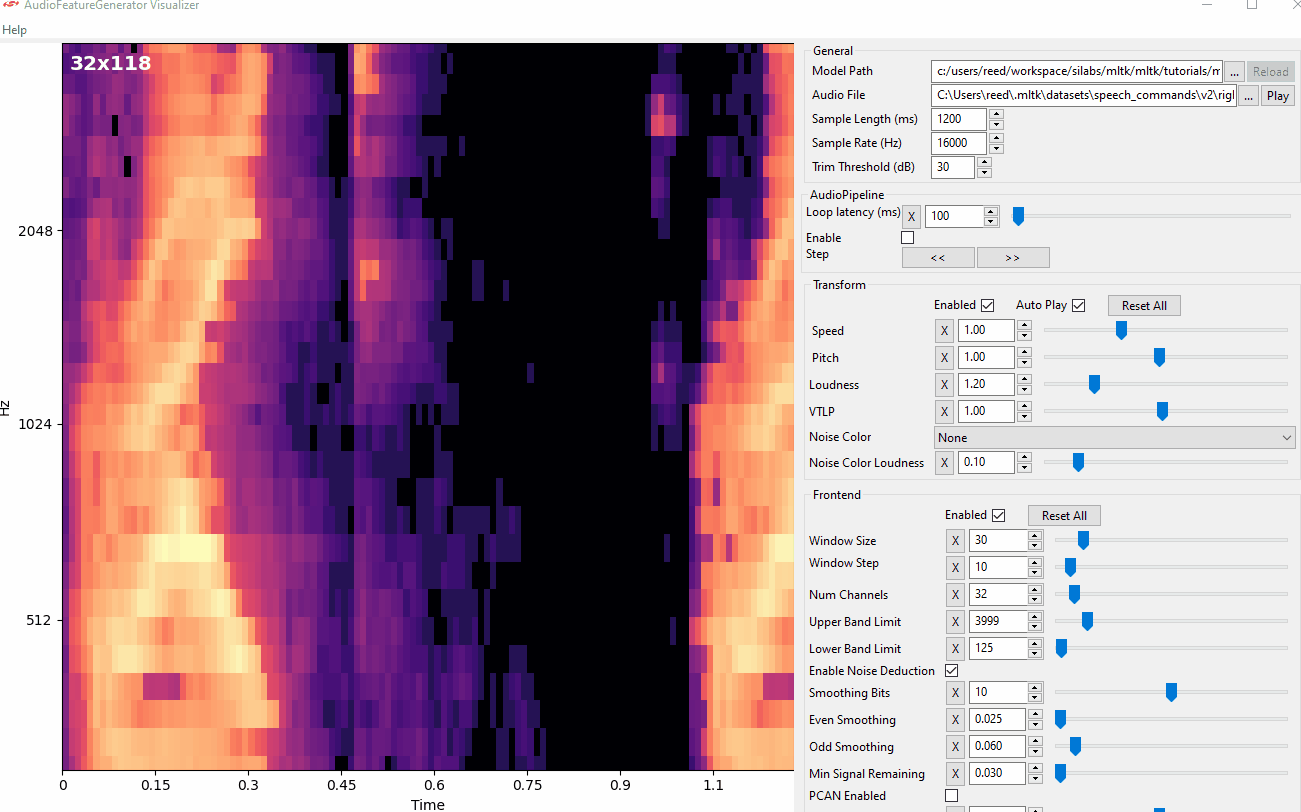

View Audio Command

  • The MLTK features a utility to view the spectrograms generated by AudioFeatureGenerator in real-time
  • This allows for adjusting the AudioFeatureGenerator settings and immediately seeing how the spectrogram changes
> mltk view_audio

Classify Audio Command

  • The MLTK features a utility to use a trained keyword spotting model to classify real-time microphone audio
  • The audio_classifier application can run on Windows/Linux or on an embedded target
> mltk classify_audio

Model Design

  • The standard Tensorflow/Keras API is used to design the machine learning model
  • The model can be designed from scratch or existing model architectures may be used
  • The MTLK comes with reference models
  • The entire model and all configuration parameters are defined in a single Python script called the Model Specification
  • With the model specification the:
    • profile command may be used to profile the model to determine latency, energy, and CPU usage
    • summarize command may be used to generate a text summary of the model
    • view command may be used to view the model in an interactive diagram
    • train command may be used to train the model

Model Design Flow


Model Specification

Profile Model

Train Model

Evaluate Model

Copy .tflite model file

into Gecko SDK Project

Profile the model before training to ensure it fits within the hardware constraints

Evaluate trained model to see how well it can make predictions on unseen data samples

The output of model training is an archive file containing the trained model files

The model specification is a single Python script containing everything needed to design, train and evaluate the model

The .tflite model file is loaded into the Tensorflow-Lite Micro Interpreter which executes on the embedded device

Model File Types

Model Specification


Keras Model File


TF-Lite Model File


Model Archive

The configuration defined in the model specification file is given to Tensorflow to train the model

The output of Tensorflow, the trained model, is a Keras .h5 model file

The Keras .h5 file is given to the Tensorflow-Lite Converter to generate a quantized, .tflite model file

The quantized, .tflite model file is programmed into the embedded device

The output of MLTK train command also generates a model archive file which contains all of the model files and training logs

TF-Lite Model File


The MLTK adds additional parameters to the .tflite model file which the Gecko SDK parses during project generation

Model Evaluation

  • Once a model is trained, it is important to evaluate it to determine how well it works against new, never-before-seen data
  • Model evaluation indicates how accurate a model's predictions may be on an embedded device in the field
    • NOTE: Model evaluation is directly dependent on how representative the given dataset is
  • The MLTK features the evaluate command

Model Profiling

  • Model profiling provides information about the hardware resources consumed by the model at runtime. This information includes:
    • Flash memory required by model file (.tflite)
    • Runtime RAM required by the loaded model
    • Latency per inference, i.e. the amount of time the model takes to execute one time
    • Energy per inference, i.e. the additional energy, not including the base-line or idle energy, the model takes to execute one time
    • CPU cycles per inference
  • These values can be either estimated in a simulator or directly measured by running the model on a physical device
  • The MLTK features the profile command
  • The MLTK also features a stand-alone executable, no installation required

Model Deploying

  • Once the trained model has acceptable accuracy and fits within the hardware constraints, it's time to deploy to an embedded device
  • Deploying the trained model is done by copying the .tflite model file in the generated model archive to your Gecko SDK project
  • When the Gecko SDK project is built, the .tflite model file is parsed by the Gecko SDK, and the corresponding header files are generated and built into the firmware application
  • NOTE: The MLTK also supports directly building C++ applications

Additional Reading

  • Modeling Guides - Detailed guides describing how to develop machine learning models using the MLTK
  • Tutorials - Step-by-step tutorials showing how to use the MLTK
  • API Examples - Example demonstrating how to use the MLTK Python API
  • C++ Development - Documentation describing how to build C++ applications for Windows/Linux or embedded targets
